Office Networking

  • ✓ Reliable Office / Guest Wi-Fi in Every Corner
  • ✓ Unified Auto Provision for IP Phones
  • ✓ Enhanced IP Camera Security, Stability, and Efficiency
  • ✓ Reliable WAN Connections, VPN, and Employee Behavior Management

Network Requirements

  • Seamless Roaming & Secure Guest Wi-Fi
  • Voice VLAN and QoS
  • LLDP and LLDP-MED
  • Access Control List (ACL) and Port Isolation
  • Assured Stable Video Quality
  • 4G and Multi-WAN Backup and Load Balancing
  • SSL/WireGuard/IPSec/PPTP/L2TP VPN & OpenVPN
  • High-Availability L3 Switch & Stacking
  • Easy Setup with ZTP (Zero-Touch Provisioning)

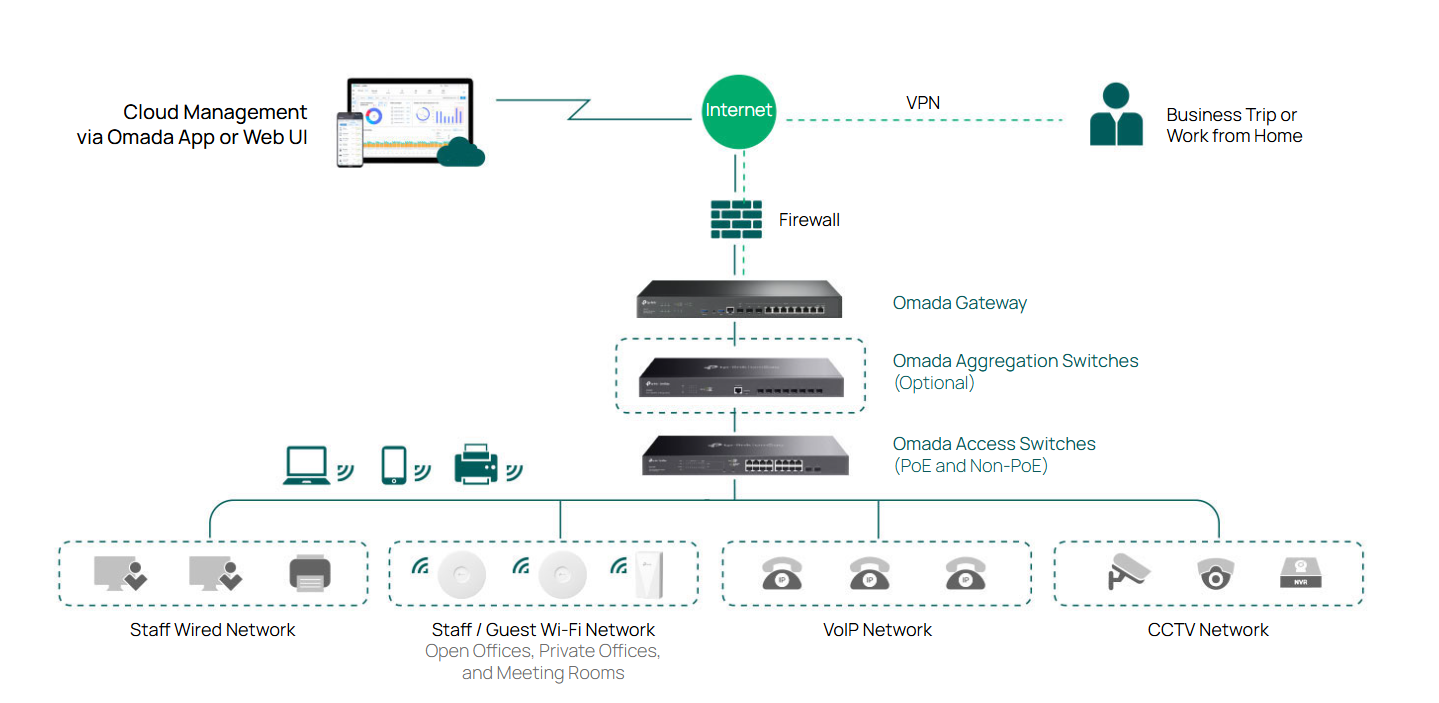

Typical Solution Topology

Omada Typical Topology and Products body { font-family: Arial, sans-serif; margin: 40px; background-color: #f8f9fa; } h2 { text-align: center; color: #006d5b; } table { border-collapse: collapse; width: 100%; background-color: white; box-shadow: 0 2px 5px rgba(0,0,0,0.1); } th, td { border: 1px solid #ddd; padding: 10px 14px; text-align: center; } th { background-color: #e6f5f0; color: #333; } tr:nth-child(even) { background-color: #f9f9f9; } a { color: #00a885; text-decoration: none; } a:hover { text-decoration: underline; }
Small and Micro Offices
< 20 Employees
Small Offices
20–100 Employees
Mid-size Offices
100–300 Employees
Controllers OC200
Qty: 1
OC300
Qty: 1
OC400
Qty: 1
Security VPN Gateway ER7206
Qty: 1
ER8411
Qty: 1
ER8411
Qty: 1
Aggregation Switch SX3008F
Qty: 1
SX3000 series
Qty: 1–2
Access PoE Switch SG3428MP
Qty: 1
SG3210XHP-M2 or SG3452XP
Qty: 1–2
SG3000-M2 PoE Series
Qty: 3–6
Access Non-PoE Switch SG3428
Qty: 1
SG3452X
Qty: 1–2
SG3000 series
Qty: 3–8
Ceiling Mount AP EAP653
Qty: 2–3
EAP723
Qty: 4–10
EAP772
Qty: 10–30
Wall Plate AP
(for Private Offices)
EAP725-Wall
Qty: 2–4
EAP725-Wall
Qty: 5–10

* contact us for more details
