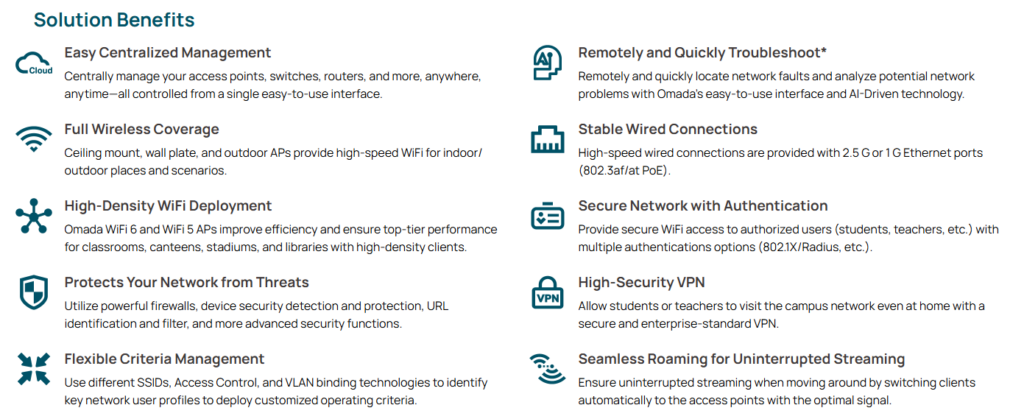

Education Networking

  • ✓ Easy management
  • ✓ High-density WiFi
  • ✓ Full WiFi coverage and wired connections
  • ✓ VPN and security

Network Requirements

  • High network security to ensure academical data security.
  • High-density deployment in the areas with high density, such as classrooms and dormitories.
  • Stable and high-speed network to ensure uninterrupted on-line classes and meetings.
  • Easy-management authentication methods to authorize the access of teachers and students.
  • Central network management and convenient equipment maintenance.

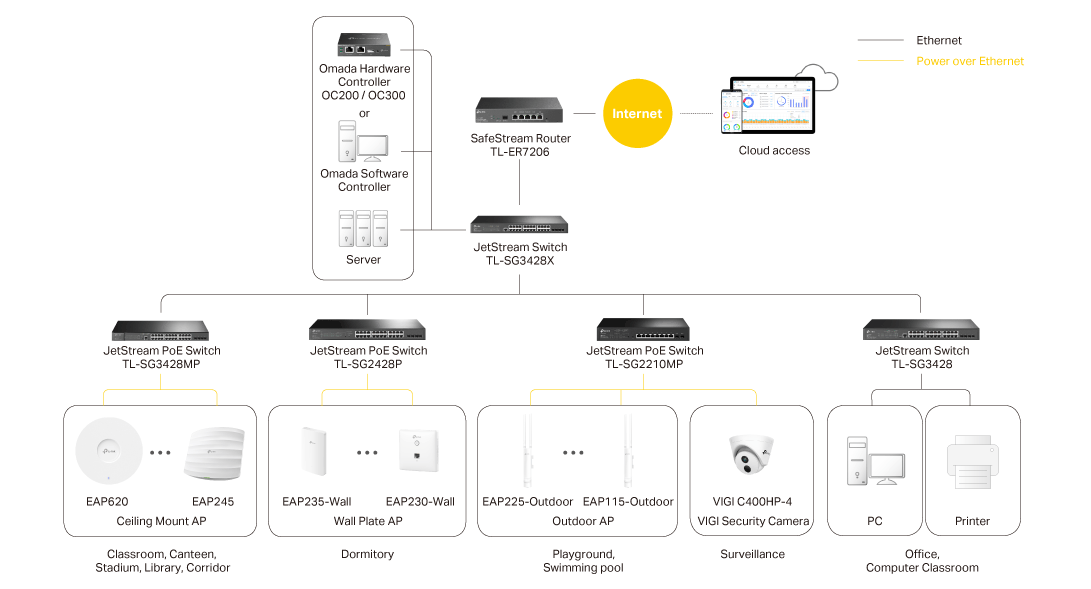

Typical Solution Topology

Networking Devices Table Responsive .table-wrapper { width: 100%; overflow-x: auto; } .my-table { width: 100%; border-collapse: collapse; font-family: Arial, sans-serif; } .my-table th, .my-table td { border: 1px solid #ddd; padding: 12px; text-align: left; vertical-align: middle; } .my-table thead th { background-color: #0a4f5a; color: white; } .my-table td.features { position: relative; padding-left: 25px; } .my-table td.features::before { content: "✓"; position: absolute; left: 8px; color: #0a4f5a; font-weight: bold; } h4 { font-family: Arial, sans-serif; font-size: 1.2em; font-weight: 700; color: #3F3A3A; margin-bottom: 0.5em; } /* Group background colors (only 2 colors) */ .group-color-1 td { background-color: #ffffff; } .group-color-2 td { background-color: #f9f9f9; } /* RESPONSIVE */ @media screen and (max-width: 768px) { .my-table thead { display: none; } .my-table, .my-table tbody, .my-table tr, .my-table td { display: block; width: 100%; box-sizing: border-box; } .my-table tr { margin-bottom: 1em; border-bottom: 2px solid #ddd; } .my-table td { text-align: left; padding-left: 50%; position: relative; } .my-table td::before { position: absolute; left: 12px; top: 12px; font-weight: bold; white-space: nowrap; content: attr(data-label); } .my-table td.products::before { content: "Products"; } .my-table td.products { padding-left: 12px; font-weight: bold; } td[rowspan] { display: table-cell; } }

High-Performance Solutions

Products Models Deployment Features
Switches TL-SG3210XHP-M2 Machine room 8× 2.5 G 802.3af/at PoE RJ45 ports; 2× 10 G SFP+ slots; 240 W PoE budget
TL-SG3428XMP Machine room 24× Gigabit 802.3af/at PoE RJ45 ports; 4× 10 G SFP+ slots; 384 W PoE budget
TL-SG3428X Office area, computer classroom 24× Gigabit RJ45 ports; 4× 10 G SFP+ slots
Ceiling Mount APs EAP660 HD High-density environments
(classroom, canteen, stadium, library)		 WiFi 6 (11AX) improves efficiency in high-density environments; Up to 3,600 Mbps WiFi; 1× 2.5 G RJ45 port; Seamless roaming; Captive portal; Supports 802.3at PoE
EAP245 Corridor, digital classroom,
other indoor areas		 Long-range indoor coverage; Dual-band 11AC WiFi with speeds of up to 1,750 Mbps; Seamless roaming; Captive portal; Supports 802.3af and Passive PoE
Wall Plate APs EAP235-Wall Dormitory Full in-room WiFi coverage; Dual-band 11AC WiFi with speeds of up to 1,200 Mbps; Thin design; Captive portal; 4× Gigabit RJ45 ports; Supports 802.3af/at PoE input and PoE passthrough
EAP230-Wall Full in-room WiFi coverage; Dual-band 11AC WiFi with speed of up to 1,200 Mbps; Thin design; Captive portal; 2× Gigabit RJ45 ports; Supports 802.3af PoE input
Outdoor APs EAP225-Outdoor Playground, swimming pool Long-range outdoor coverage; Dual-band 11AC WiFi with speeds of up to 1,200 Mbps; 1× Gigabit RJ45 port; Supports 802.3af and Passive PoE; Mesh; Seamless roaming; IP65 weatherproof enclosure
Networking Devices Table Responsive .table-wrapper { width: 100%; overflow-x: auto; } .my-table { width: 100%; border-collapse: collapse; font-family: Arial, sans-serif; } .my-table th, .my-table td { border: 1px solid #ddd; padding: 12px; text-align: left; vertical-align: middle; } .my-table thead th { background-color: #0a4f5a; color: white; } /* Group background colors (only 2 colors) */ .group-color-1 td { background-color: #ffffff; } .group-color-2 td { background-color: #f9f9f9; } .my-table td.features { position: relative; padding-left: 25px; } .my-table td.features::before { content: "✓"; position: absolute; left: 8px; color: #0a4f5a; font-weight: bold; } h4 { font-family: Arial, sans-serif; font-size: 1.2em; font-weight: 700; color: #3F3A3A; margin-bottom: 0.5em; } /* RESPONSIVE */ @media screen and (max-width: 768px) { .my-table thead { display: none; } .my-table, .my-table tbody, .my-table tr, .my-table td { display: block; width: 100%; box-sizing: border-box; } .my-table tr { margin-bottom: 1em; border-bottom: 2px solid #ddd; } .my-table td { text-align: left; padding-left: 50%; position: relative; } .my-table td::before { position: absolute; left: 12px; top: 12px; font-weight: bold; white-space: nowrap; content: attr(data-label); } .my-table td.products::before { content: "Products"; } .my-table td.products { padding-left: 12px; font-weight: bold; } td[rowspan] { display: table-cell; } }

Cost-Effective Solutions

Products Models Deployment Features
Routers TL-ER7206 Machine room 5× GE RJ45 ports + 1× Gigabit SFP ports; Up to 4 WAN ports; Firewall; VPN;
TL-R605 5× GE RJ45 ports; Up to 4 WAN ports; Firewall; VPN
Switches TL-SG3428X Machine room 24× Gigabit RJ45 ports; 4× 10 G SFP slots
TL-SG3428MP 24× Gigabit 802.3af/at PoE RJ45 ports; 4× Gigabit SFP slots; 384 W PoE budget
TL-SG2210MP 8× Gigabit 802.3af/at PoE RJ45 ports; 2× Gigabit SFP slots; 150 W PoE budget
TL-SG3428 Office area, computer classroom 24× Gigabit RJ45 ports; 4× Gigabit SFP slots
Ceiling Mount APs EAP620 HD High-density environments
(classroom, canteen,
stadium, library)		 WiFi 6 (11AX) improves efficiency in high-density environments; Up to 1,800 Mbps WiFi; Seamless roaming; Captive portal; Supports 802.3at PoE
EAP265 HD Dedicated WiFi 5 (11AC) AP for high-density environments; Up to 1,750 Mbps WiFi; Seamless roaming; Captive portal; Supports 802.3af and Passive PoE
EAP115 Corridor, digital classroom,
other indoor areas		 Long-range indoor coverage; 300 Mbps WiFi; Captive portal; Supports 802.3af PoE
Wall Plate APs EAP225-Wall Dormitory Full in-room WiFi coverage; Dual-band 11AC WiFi with speeds of up to 1,200 Mbps; Thin design; Captive portal; 4× 10/100 Mbps ports; Supports 802.3af/at PoE input and PoE passthrough
EAP115-Wall Full in-room WiFi coverage; 300 Mbps WiFi; Thin design; Captive portal; 2× 10/100 Mbps ports; Supports 802.3af PoE input
Outdoor APs EAP110-Outdoor Playground, swimming pool Long-range outdoor coverage; 300 Mbps WiFi; IP65 weatherproof enclosure; Supports Passive PoE
